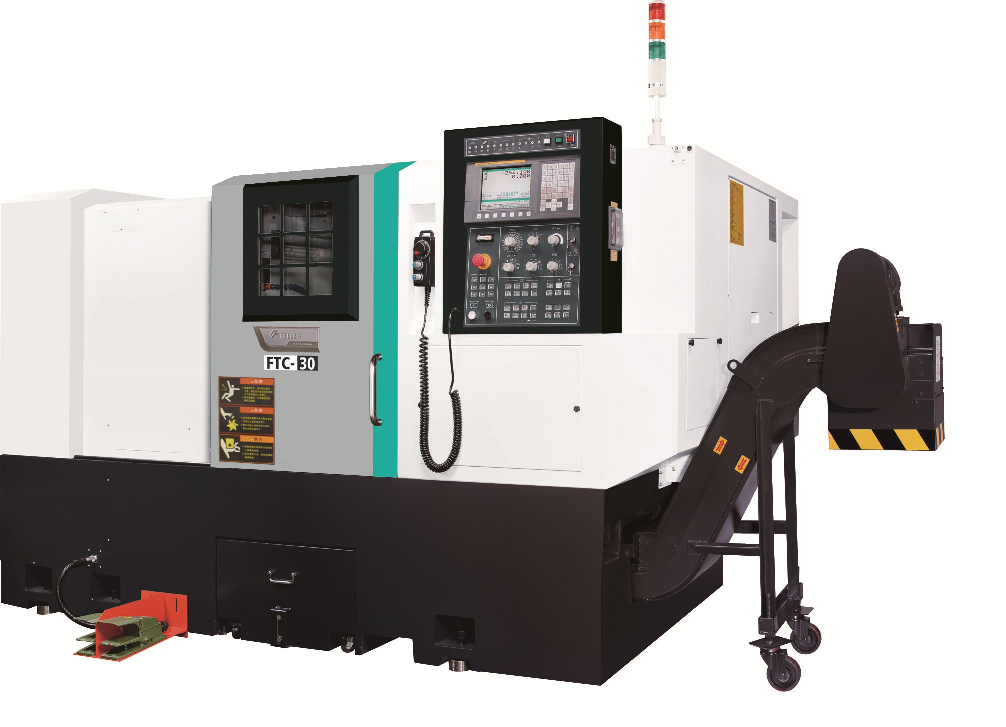

FTC-30
● Main Features：
1. Swing over bed Φ580 mm
2. Standard turning diameter Φ310 mm
3. Max. turning diameter Φ450 mm
4. Max. turning length Φ621 mm
● Features：
1. High price performance ratio, high productivity, suitable for processing small disc shaft parts.
2. Equipped with servo turret, fast tool change speed, and the new trend in the future market.
3. Efficiency, prexision, quality, rigidity and great price, all satisfactions in one machine.
4. The whole machine uses imported linear guideway, with 52 bar capacity through spindle, and P4 high precision bearings, a completely durable machine.
5. Exquisite design, small space occupant, improve space efficiency and facilitate plant planning.
| Sản phẩm | Đơn vị | FTC-30 | |
|---|---|---|---|
| Travel | X axis travel | mm | 225+25 |
| Z axis travel | mm | 670 | |
| Swing Over Bed/Front Cover | mm | φ580 | |
| Standard Turning Diameter | mm | φ310 | |
| Max. Turning Diameter | mm | φ450 | |
| Max. Turning Length | mm | 621 | |
| Hydraulic Power Chuck Diameter | 10”(12”) | ||
| Swing Over Carriage | mm | φ440 | |
| Spindle | Spindle Nose | A2-8 | |
| Spindle speed | rpm | 3,500 | |
| Spindle Bore | mm | φ88 | |
| Through Hole Draw Tube | mm | φ75 | |
| Spindle Bearing Diameter | mm | φ130 | |
| Spindle taper | 1:20 | ||
| Feed rate | X-axis rapid traverse | m/min | 20m/min |
| Z-axis rapid traverse | m/min | 20m/min |
