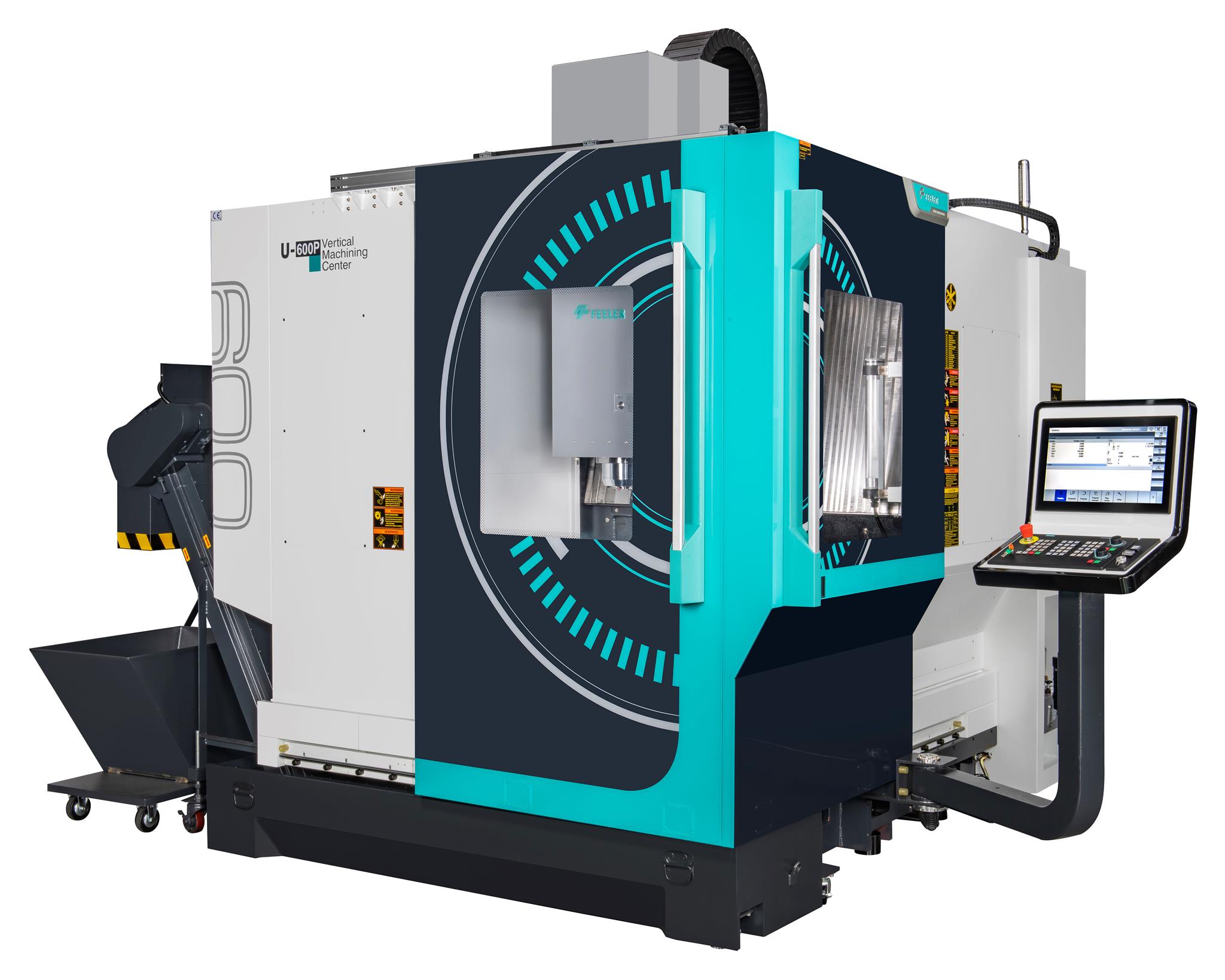

5 Axis Vertical Machining Center U-600P

Optimized structure configuration
– The base and column are structured as one-Piece casting, which eliminates possible tolerance of the jointing interface.
– Box-opstructure casting and optimal span realize exceptional rigidity and stability.

Overlapped Axes with 2 Rotating Axis
– Axes of linear movement and rotation are separated so that during 5-axis machining, curve tolerance or error can be controlled and adjusted rather easily.

3 Axis Motion Area Partitioned Processing Area
-Effective In addition to space chips removal, promoting Antifouling capability, optimal span realize exceptional rigidity and stability.

Chip removal function
– Forming one large funnel chips off, high performance chip removal

Thêm vào danh sách yêu cầu

Sản phẩm		Đơn vị	5 Axis Vertical Machining Center U-600P
Travel	X axis travel	mm	460
	Y axis travel	mm	620
	Z axis travel	mm	400
	A-Axis rotation		+110°~-90 °
	C-Axis rotation		360°
	Spindle nose to table surface Z axis	mm	150-550
	Table surface to floor	mm	750(±5)
Spindle	Spindle speed	rpm	Direct-drive type 10,000rpm
	Spindle nose		7/24 Taper NO.40
	Spindle motor	Kw	7.5/11
Feed rate	X-axis rapid traverse	m/min	30
	Y-axis rapid traverse	m/min	30
	Z-axis rapid traverse	m/min	30
